15-Inch DTH Hammers
Bit Range
17″–20″
(432–508 mm)
Impact Frequency
Up to1,140 bpm
Working Pressure
150–250 PSI
SHANK SUPPORT
SD15
Why Drill King?
Superior Technology
The HADK-150 delivers more energy per blow, translating directly into faster penetration on the largest hole diameters Drill King offers.
Hardened Piston
A hardened piston extends component life under the sustained high-torque loads typical of 15" drilling.
Massive Rotation Torque
10,000 lb·Ft (13,560 N·m) of rotation torque drives the largest-diameter bits through the toughest formations.
Robust SD15 Shank
A dedicated SD15 shank design matches large-diameter rigs without custom tooling.
Maximized Uptime
Repair and rebuild kits keep the hammer field-serviceable, minimizing downtime on the largest-scale projects.
Extended Component Life
Premium alloys and wear-resistant surface treatments extend tool life and reduce operating cost on large-diameter tooling.
Technical Specifications
Full parts list, dimensions, exploded-view diagram, and air consumption profile for the HADK-150.
HADK- 150
Top Sub Connection
8-5/8" API REG PIN
Eff. Length
74.10 in / 1882 mm
OD
14.8 in / 376 mm
Hammer Weight
2769 lbs / 1256 kg
| No | Part Name | Qty | Part Number |
|---|---|---|---|
| 1 | Top Sub | 1 | HPDK15002 |
| 2 | Wear Spacer (Top / Bottom) | 2 | HPDK15004 |
| 3 | Top Sub O-Ring | 1 | See Sealkit |
| 4 | Check Valve | 1 | HPDK15007 |
| 5 | C.V. Spring | 1 | HPDK15009 |
| 6 | Choke Set | 1 | HPDK15008 |
| 7 | Spring Washer | 1 | HPDK15005 |
| 8 | Makeup Ring | 1 | HPDK15006 |
| 9 | Air Distributor | 1 | HPDK15010 |
| 10 | Air Dis. O-Ring | 1 | See Sealkit |
| 11 | Cylinder | 1 | HPDK15012 |
| 12 | Piston | 1 | HPDK15014 |
| 13 | Wear Sleeve | 1 | HPDK15001 |
| 14 | Piston Ret. Ring | 1 | HPDK15017 |
| 15 | Snap Ring | 1 | HPDK15021 |
| 16 | Bit Ret. Ring | 1 | HPDK15018 |
| 17 | Bit Ret. O Ring | 1 | See Sealkit |
| 18 | Bearing | 1 | HPDK15020 |
| 19 | Chuck | 1 | HPDK15022 |
| Sealkit (Items 3, 10, 17) | 1 | HPDK150SEALKIT | |
| Complete Hammer | 1 | HADK150 | |
| Top Sub Connection | 8-5/8″ API REG PIN |
| Eff. Length (in / mm) | 74.10 / 1882 |
| OD (in / mm) | 14.8 / 376 |
| Hammer Weight (lbs / kg) | 2769 / 1256 |
| Piston Weight (lbs / kg) | 528 / 240 |
| Working Pressure (PSI / Bar) | 150-250 / 10.3-17.2 |
| Application Bit (in / mm) | 17-20 / 432-508 |
| Rotation Speed (RPM) | 5-15 |
| Make-Up Torque (lb·Ft / N·m) | 20000 / 27120 |
| Rotation Torque (lb·Ft / N·m) | 10000 / 13560 |
| Frequency (blows / min) | 1140 |

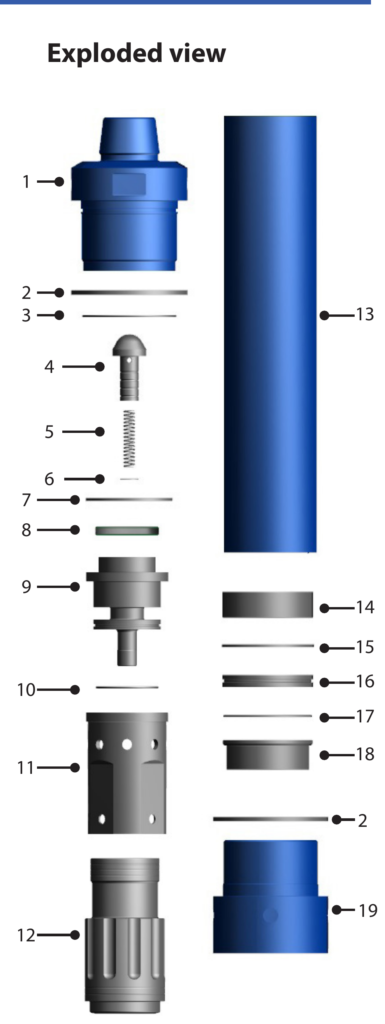

Exploded View — HADK-150 (SD15)
